Pool Pump Timer Not Working
Timer Clock Problems, Trippers, Wiring Faults, and How to Restore Scheduling
A pool pump timer is the simplest form of pool automation. It controls when the pump runs so filtration, circulation, and chlorination happen consistently without you turning the pump on and off manually. When a timer fails, the pump may not run at all, may run continuously, or may run at the wrong times. This quickly affects water clarity because circulation becomes unpredictable, filters do not get enough run me, and chlorine does not distribute evenly. Timer problems are usually caused by incorrect settings, worn mechanical parts, failed relays, or wiring issues rather than anything complicated.
This guide explains the most common pool mer faults, how to diagnose them safely, and what repairs or replacements are typically needed.
Timer not switching the pump on or off symptoms
The clearest symptom is that the pump ignores the schedule. It stays off during a programmed run me or it stays on when it should have switched off. Another common symptom is the timer clock not moving, meaning the dial stays on the same time position all day. Some timers also produce inconsistent operation where the pump switches on some days but not others, especially after power interruptions.
The first job is to determine whether the timer clock is running and whether the timer is actually sending power to the pump. This separates a settings issue from a mechanical or electrical failure.
Mechanical timer clock motor and dial rotation problems

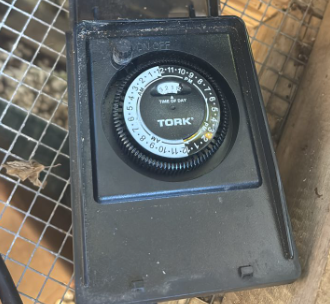

Mechanical pool timers use a small clock motor to rotate a dial over 24 hours. If the clock motor fails, the dial stops moving and the schedule will never progress. The pump might stay on in one position or never turn on depending on where it stopped. A failed clock motor can also cause the timer to lose time and drift, resulting in the pump running at unexpected hours.
Diagnosis begins by checking whether the dial moves over me. If you mark the dial position and it has not moved after a while, the clock motor may not be running. Power supply to the timer must be confirmed because a timer dial will not move without correct voltage.
Clock motor replacement is possible on many mechanical timers, but in some cases replacing the full timer is more practical.
Timer trippers, pins, and schedule settings faults
Many mechanical timers use trippers or pins that physically push a switch lever to turn the pump on and off. If a tripper is missing, loose, or worn, the pump will not switch at the right me. If trippers are installed in the wrong positions, the schedule will be incorrect. If the tripper screw is loose, the tripper can slip on the dial and drift.
A common error is that trippers are installed but the manual override switch is left in the wrong position. Another common issue is that the timer dial time is not set correctly, especially after load shedding or power outages. If the dial time is wrong, the schedule is wrong even if the trippers are correct.
Correcting these issues is often as simple as setting the current time on the dial, tightening trippers, and confirming the manual override is in the timed position.
Digital timer programming and schedule override issues
Digital timers fail differently. If a digital timer loses its program due to power loss or a weak internal backup battery, the pump may stop running on schedule. Digital timers can also be accidentally placed in manual mode where the schedule is ignored. If the timer display shows manual, override, or off status, schedules may not run.
Programming issues are common. Incorrect on and off times, incorrect day settings, and incorrect time format can all create unexpected pump behaviour. Correct diagnosis involves checking the clock time, checking stored programs, confirming days and run periods, and ensuring the output is set to automatic scheduling mode.
If the timer display is blank or flickers, power supply or internal timer failure is likely.
Timer relay and contact failure inside the timer
Both mechanical and digital timers rely on switching components. A mechanical timer uses internal contacts and a switch mechanism. A digital timer often uses a relay. When these contacts wear out, the mer may appear to work but the pump does not receive power. This often shows as the dial turning normally or the digital screen showing on, but the pump stays off.
Signs of contact failure include clicking sounds without pump start, burnt smell inside the timer enclosure, heat discoloration near terminals, and intermittent operation. Because timers switch motor loads, contacts can arc over time, especially in older installations.
Repair may involve replacing the timer mechanism or replacing the entire mer unit. Contact repair is not usually reliable for long term use unless the timer is designed with replaceable parts.
Wiring faults, loose terminals, and safety isolation
A pool timer is an electrical device. Loose wiring and corroded terminals are common failure points, especially in outdoor enclosures. A loose neutral or loose live connection can cause intermittent timer operation and heat buildup. Corrosion can increase resistance and lead to unreliable switching.
Any wiring work should be done with power isolated at the breaker. Outdoor mer boxes should be inspected for water ingress, insects, and corrosion. If there is visible burn damage or melted insulation, the timer should not be used until it is repaired safely.
If the timer is receiving power but the pump never starts, the issue could also be the pump itself. The timer may be working but the pump motor may have a capacitor issue, breaker issue, or thermal overload issue. This is why confirming whether voltage is being delivered to the pump during on cycles is part of professional diagnosis.
Load shedding and power outage effects on timer accuracy
In regions with frequent power interruptions, timers can drift or reset. Mechanical timers stop when power is off, so the dial becomes inaccurate. Digital timers may reset to default if backup fails. This causes schedules to run at unexpected times even though the timer is not broken.
The fix is to reset the clock time after outages and confirm the schedule. For more stability, some pool owners use timers with battery backup or automation systems that retain time reliably.
When to repair vs replace a pool timer
Repair is worth doing when the issue is trippers, settings, or a clock time adjustment. Replacement is often smarter when the clock motor has failed, internal contacts are burnt, the enclosure is corroded, or the timer is old and unreliable. Replacement also makes sense if you want better control, such as multiple daily schedules or integration with a chlorinator or heater.
Final thoughts
A pool pump timer not working usually comes down to one of four causes. Incorrect time or tripper settings, a failed clock motor or internal relay, burnt contacts, or wiring and power supply issues. Diagnosis starts with confirming the dial or clock is running, confirming the schedule is set correctly, and confirming the timer is delivering power to the pump during on cycles. Fixing timer scheduling restores consistent circulation, which protects water clarity and reduces algae risk.
If you want to continue in order, the next topic is number 28, pool light repair and replacement.
